Key features
- Integrated waterproofing flangeThe membrane bonds directly to the drain body — the single most important detail in preventing leaks.
- Height-adjustable frameCorrects on-site tile thickness variance, so the grate sits flush rather than proud or recessed.
- Tool-free grate removalThe hair trap is accessible in seconds, without levers pressing against the tile edge.
- Rigid constructionResists deflection under load, so the tile edges around the frame do not crack.
- Single-plane fallLets large-format tile run to a straight wall line instead of being cut to four separate falls.
Product parameters

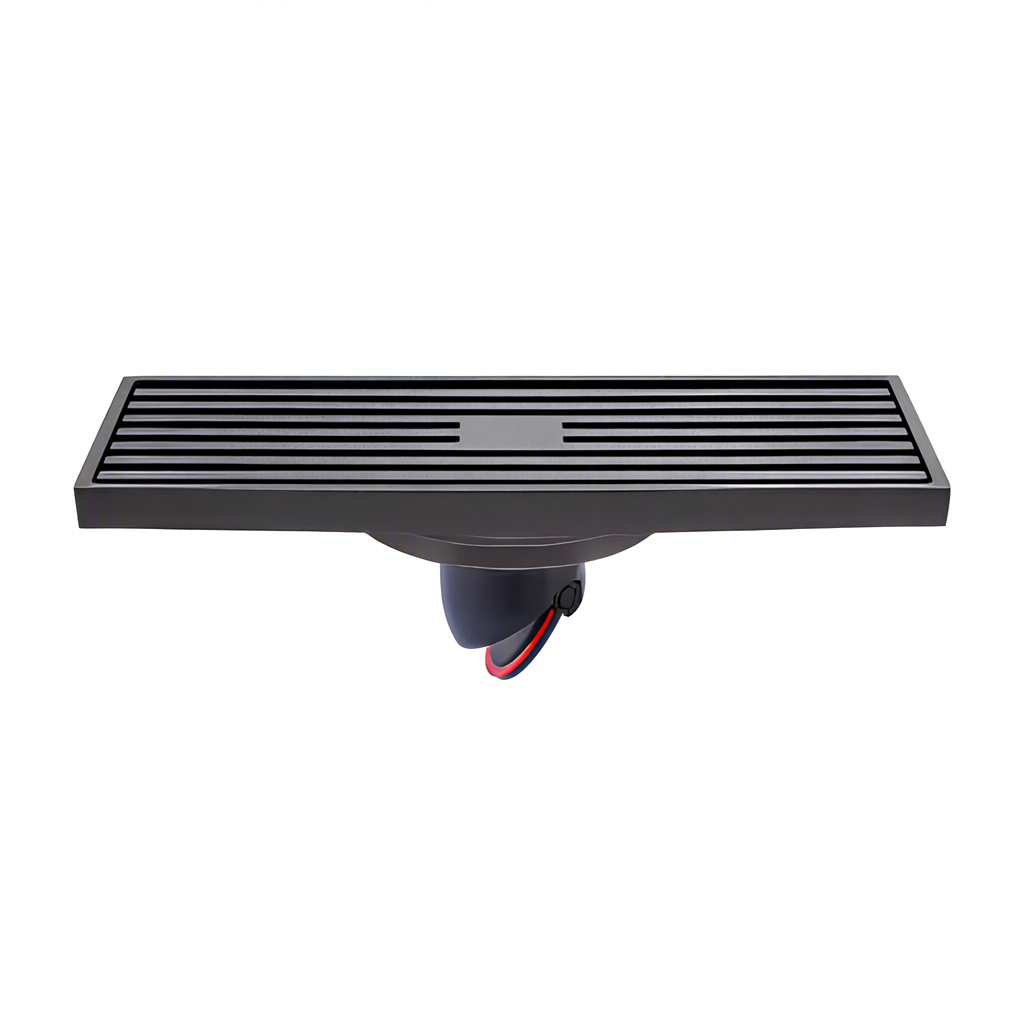

| Product name | 长条地漏（侧排） | Model number | DL-121 |
|---|
| Brand | AERLO | Size | 8 × 20 (cm) |
|---|
| Material | Stainless steel / Brass | Colour | Electroplated / Brushed |
|---|
| Application | Bathroom, washroom and public wet areas | Place of origin | Taizhou, Zhejiang, China |
|---|
| Port | Ningbo, Zhejiang | Packing | Poly bag + box + carton |
|---|
| OEM & ODM | Customised service accepted | Warranty | 3 years |
|---|
Lead time
| Quantity (pieces) | Lead time (days) |
|---|
| 1 – 5,000 | 20 |
| 5,000 – 10,000 | 30 |
| > 10,000 | To be negotiated |
Customization
| Item | Min. order |
|---|
| Customized logo | 5,000 |
| Customized packaging | 12,000 |
| Graphic customization | 12,000 |
Before ordering: measure the available floor build-up at the drain position (slab to finished tile surface) and confirm the outlet position and pipe size. Send us these figures and we will confirm the drain suits your floor section.
